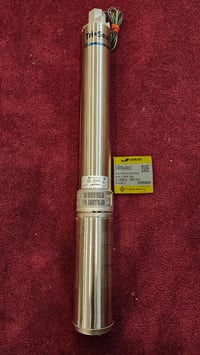

3/4Hp 5-GPM Well Pump 4" (Deep Set) 240v

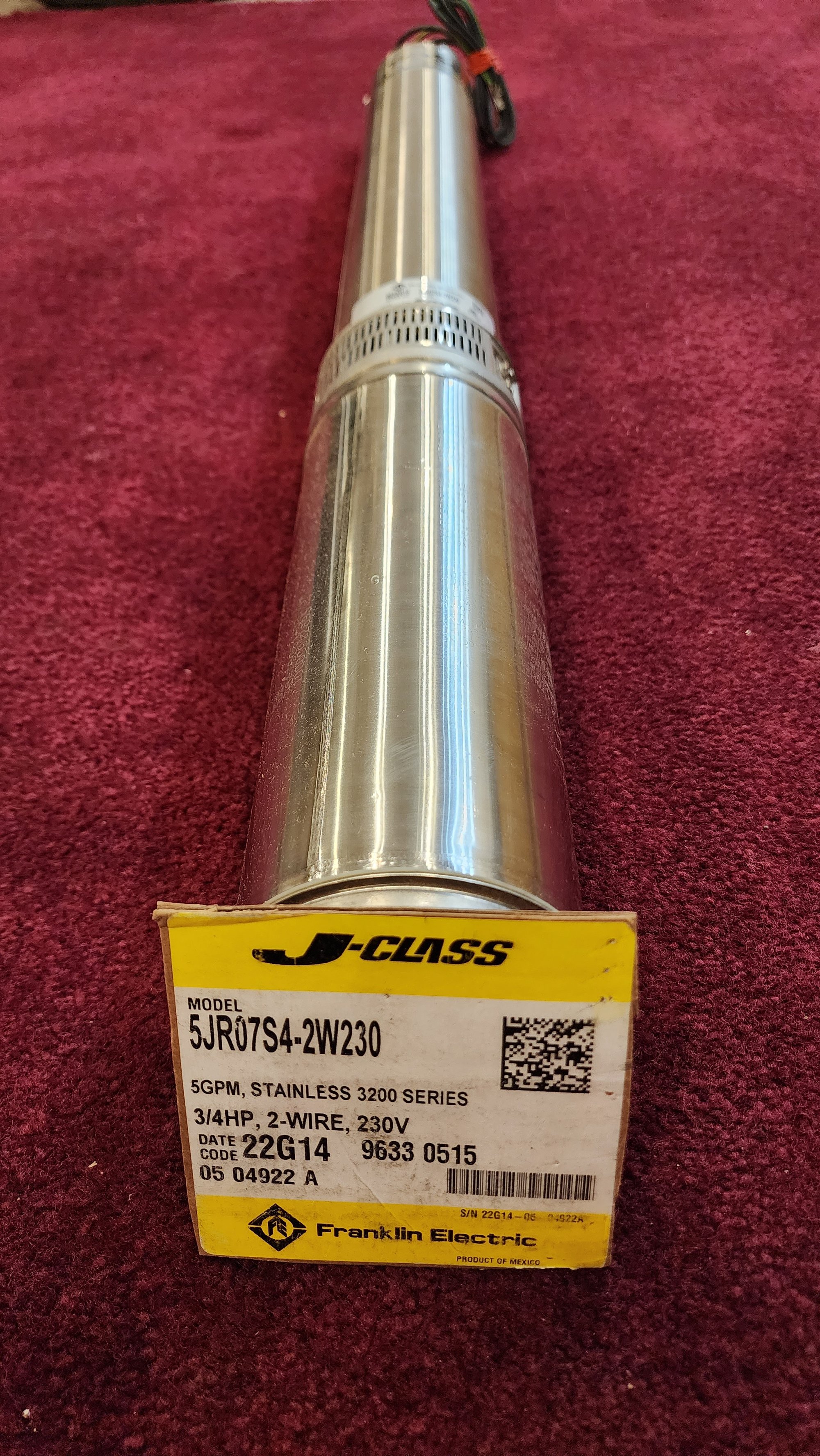

0.75Hp Franklin Electric 240v Motor (2-wire)

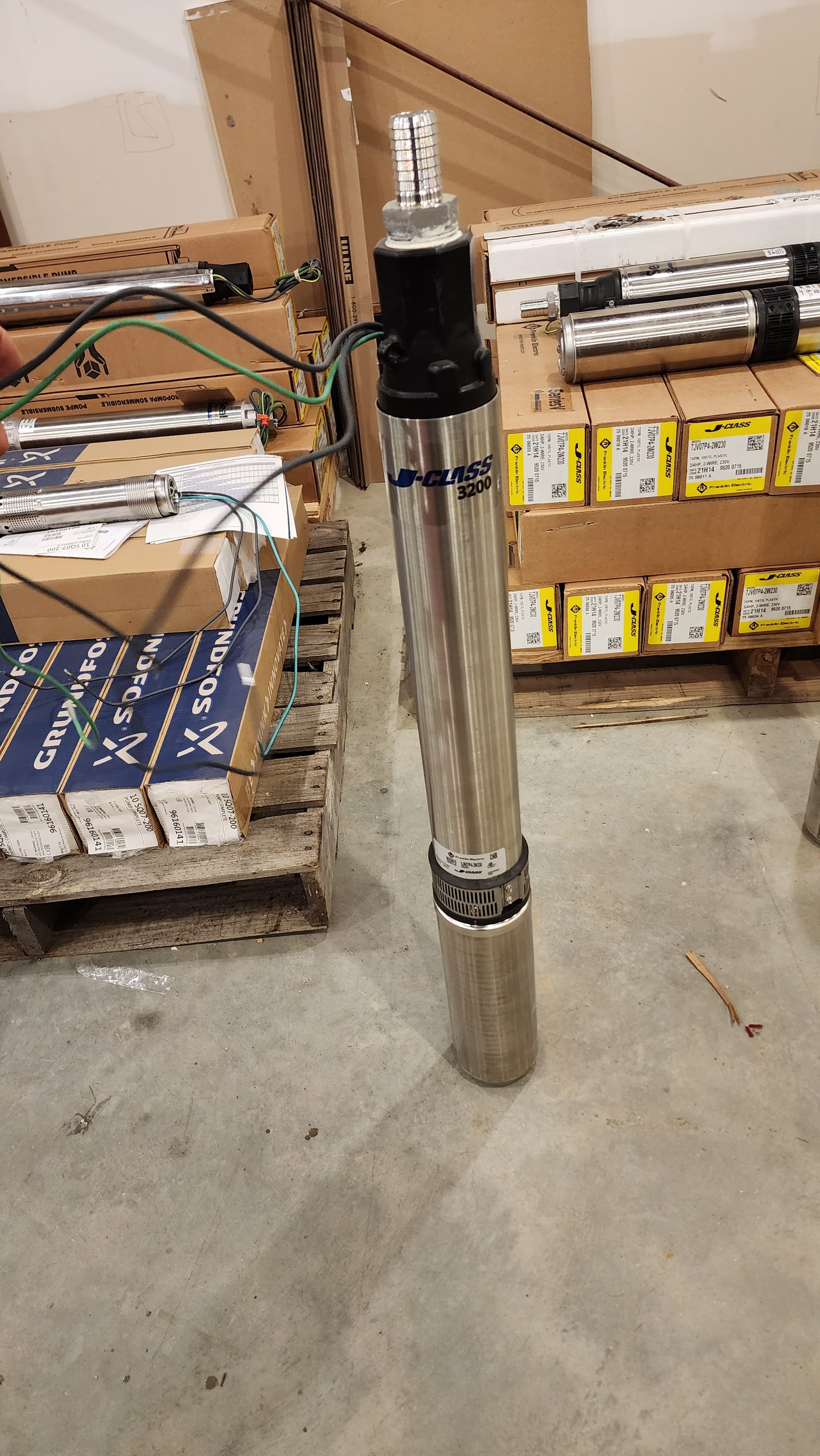

5GPM J-Class 3200Series 4" Pump Head

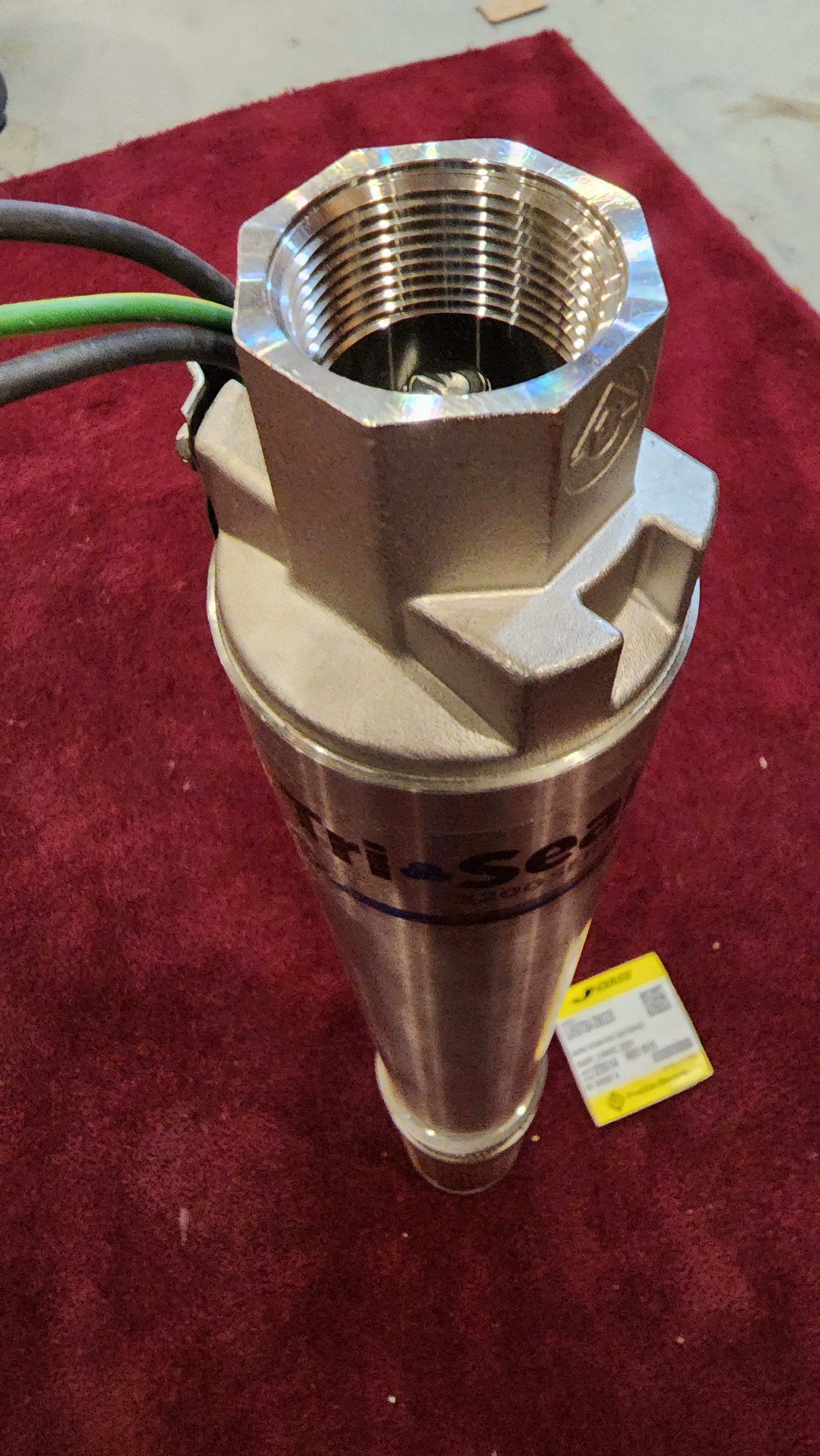

1.25" Female Thread Discharge
Built-in Check-Valve

Typical installation Depth 300ft-400ft
Maximum Depth of Operation is 400ft.

This Pump is Commonly installed in Wells that Produce less than 2GPM & that are deeper than 350ft.

We Recommend using 10-2 Submersible pump wire, although 12-2 is acceptable for 300ft install depth.

A Stainless Steel Male Adapter Should be used when connecting this Pump to the pipe. 1.25"x1"
(Sold Separately)

If installed at 350-400ft, we recommend using an additional Brass Check-Valve (Simmons)
