Grundfos 3" SQ-190 / 1Hp 22GPM Irrigation Pump

$1,199.00
Image 1 of Grundfos 3" SQ-190 / 1Hp 22GPM Irrigation Pump
Image 2 of Grundfos 3" SQ-190 / 1Hp 22GPM Irrigation Pump
Image 3 of Grundfos 3" SQ-190 / 1Hp 22GPM Irrigation Pump
Image 4 of Grundfos 3" SQ-190 / 1Hp 22GPM Irrigation Pump
Image 5 of Grundfos 3" SQ-190 / 1Hp 22GPM Irrigation Pump
1 of 5

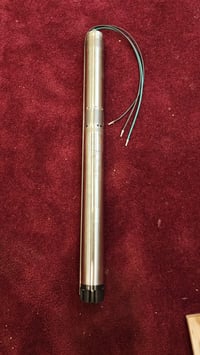

This is a 3" Submersible Well Pump by Grundfos
1.0 Hp Motor 240v (2-wire)
22 GPM Pump Head (All Stainless Steel)

More-so Recommended for Irrigation Use
Or Residencial with a Large Bladder Tank 86/109
This Pump is Ideal for 4" & 6" Residencial Wells

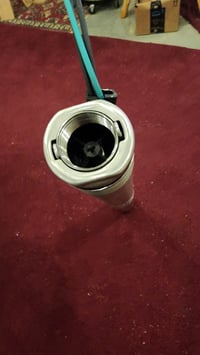

1.5" Discharge with Built-in Check-Valve
We sell the adapter/reducer Bushing needed for 1" pipe or Check-Valve

Typical Installation Depth 50ft- 150ft
Max install Depth 180ft

Pumps Flow Rate by Depth
30 Gpm @ 40ft
23 Gpm @ 100ft
8 Gpm @ 180ft Max Depth

Grundfos SQ Pumps have a Built-in "No water" Saftey, so if your well ever ran dry the pump would turn itself off for 5 minutes allowing the well to recover.
Another Great Feature of the Grundfos SQ Pumps is called "Soft Start". This Allows the pump to slowly start, (rather than on All at once) this helps prevent the wire from Chaffing & is less shock on the system.
